S0W single stage double suction pump is a horizontal central volute type centrifugal pump

S0W series single-stage double suction pump is a horizontal volute type centrifugal pump, which is mainly used to transport clean water with temperature not higher than 105℃ or liquid with physical and chemical properties similar to water. It is suitable for water works, pumping stations, power stations, air conditioning water circulation, hot water circulation for heating, industrial water supply systems, fire fighting systems, ships, oil refining industry (general liquid) and other liquid transportation occasions.

【 Product Overview 】

S0W series single-stage double suction pump is a horizontal volute type centrifugal pump, which is mainly used to transport clean water with temperature not higher than 105℃ or liquid with physical and chemical properties similar to water. It is suitable for water works, pumping stations, power stations, air conditioning water circulation, hot water circulation for heating, industrial water supply systems, fire fighting systems, ships, oil refining industry (general liquid) and other liquid transportation occasions.

【 Operation data 】

Outlet diameter: D N=80 ~ 500 mm Flow rate: 50 ~ 4200 m³/h(rated point)

Head: n=7.6 ~ 160 m(rated point) Allowable working pressure: 2.5MPa; Allowable test pressure: 3.75MPa

Medium: clean water or other liquid with physical and chemical properties similar to clean water (solid particles ≤80 mg/L).

Temperature: ≤105℃

【 Structural characteristics 】

Compact structure and good stability. Double suction pump is open in the pump shell, the inlet and outlet are on the pump body, maintenance only need to lift out the pump cover, the rotor parts can be removed for maintenance, without disassembling the pipeline, very convenient.

The motor (drive machine) can be either on the left or the right end, as required, for easy installation on site. The axial size of the rotor component is shortened in structure, the rigidity of the shaft is better, the operation is more stable and reliable. The pump body sealing ring is provided, and the impeller sealing ring is an optional part. The sealing ring can be replaced after wear, reducing the cost of operation and maintenance.

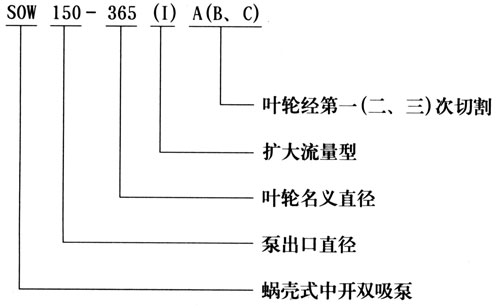

【Model significance】

【 Working conditions 】

1. Allowable working pressure is 2.5MPa; That is, pump inlet pressure + pump head ≤ 2.5MPa. According to the pressure of the pump shell, the pump body and the pump cover are made of gray cast iron (1.6MP a), ductile cast iron (2.0MPa) and cast steel (2.5MPa). Please indicate the pressure or material of the pump when ordering.

2. medium: temperature ≤105℃ of water or physical and chemical properties similar to water of other liquids (solid particles ≤80 mg/L).

Product related documents:

If you want to know more about the S0W single stage double suction pump system horizontal center volute centrifugal pump, please click the connection below to view

【S0W single stage double suction pump system horizontal open volute centrifugal pump performance curve】This paper introduces the curve relationship of flow, head, power, efficiency and other parameters of S0W single stage double suction pump system.

【S0W single stage double suction pump system horizontal open volute centrifugal pump performance parameter table】This paper introduces the flow, head, power, efficiency and other data corresponding to each specification of S0W single stage double suction pump system.

【S0W single stage double suction pump system horizontal open volute centrifugal pump installation dimensions】This paper introduces the installation dimensions and flange connection dimensions of each specification product of S0W single stage double suction pump with horizontal center volute type centrifugal pump.

【S0W single stage double suction pump system horizontal open volute type centrifugal pump instructions】This paper introduces the points for attention in installation and use of the horizontal volute type centrifugal pump of S0W single stage double suction pump system and the common troubleshooting methods.

If you are interested in the S0W single stage Double suction pump system horizontal center volute centrifugal pump products, please download the S0W single stage double suction pump system horizontal center volute centrifugal pump electronic sample, so that you can consult at any time!
