XBD-HYD vertical multistage constant pressure tangential fire pump

Category:Fire pump series
Number of views:9
QR code:

Add time:2025-04-10
Brief:

Product characteristics

XBD-HYD series vertical multi-stage constant pressure tangential fire pump has the characteristics of variable current pressure regulation, that is, in the full flow range, the head does not change much, when the pump changes from zero flow to the required flow range, its head changes in the range of 5%, and small flow or zero flow no pressure, Thus, the phenomenon that the ordinary centrifugal pump can not supply water when the flow is small and medium at the fire fighting site is avoided. Greatly improve the efficiency of fire fighting and the reliability of fire equipment and fire personnel.

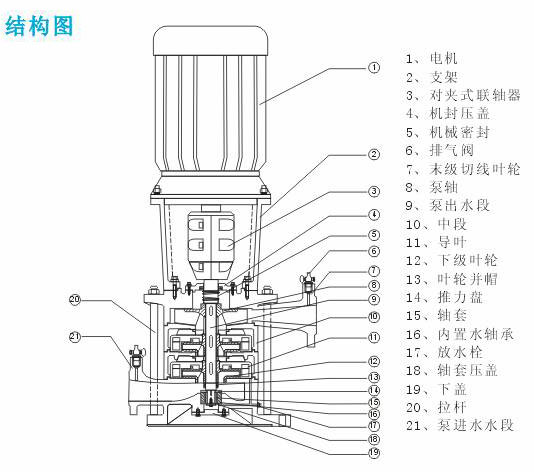

According to the characteristics of the fire pump combined with our company's situation, the final impeller of the pump is open, the axial force is small, there is no mouth ring, and the phenomenon of corrosion and bite is prevented. The impeller is closed under multiple stages, the number of the impeller is small, and the bronze material is not easy to rust and bite. The pump body and cover are made of cast iron, and the impeller is adopted according to the user's requirements.

XBD-HYD series vertical multi-stage constant pressure tangential fire pump compared with similar fire pumps, the volume of the pump with the same flow pressure specifications is reduced by 30%-50% to reduce the floor area and space of the pump. Its type spectrum distribution is reasonable, can well adapt to the fire protection needs of different floor management, meet the design selection, and the product has reached a higher level in China. It has the characteristics of small footprint, light weight, excellent performance and reliable operation. It has high cost performance and is the ideal product for users to choose fire pump.

XBD-HYD series vertical multi-stage constant pressure tangential fire pump, the direction of the inlet and outlet flanges can be changed into 00,900,180,2700 relative to the direction of the suction inlet as required. (Single stage pump not allowed 00)

Product overview

XBD-HYD series vertical multi-stage constant pressure tangential fire pump is a utility model product developed by our company according to market demand, which is especially suitable for high-rise building fire water supply, and is a reliable and high-quality fire pump. Its performance and technical conditions meet the requirements of the national standard GB6245-2006 "fire pump performance requirements and experimental methods" standard.

Performance parameter

Working condition

Rotation speed: 2950r/min

Flow range 10-80L/s

Liquid temperature ≤80℃ Clean water

Pressure range 0.5-2.5Mpa

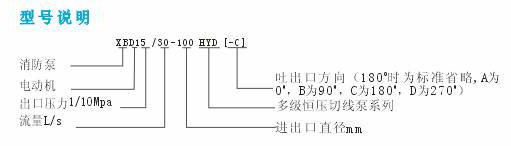

Parametric chart

Model number	Flow rate(L/S)	Stress P(Mpa)	Motor（KW)	Model number	Flow rate(L/S)	Stress P(Mpa)	Motor（KW)
XBD5/10-80HYD	10	0.5	11	XBD19/30-100HYD	30	1.9	90
XBD6/10-80HYD	10	0.6	11	XBD20/30-100HYD	30	2	110
XBD7/10-80HYD	10	0.7	15	XBD21/30-100HYD	30	2.1	110
XBD8/10-80HYD	10	0.8	15	XBD22/30-100HYD	30	2.2	110
XBD9/10-80HYD	10	0.9	18.5	XBD23/30-100HYD	30	2.3	110
XBD10/10-80HYD	10	1	18.5	XBD24/30-100HYD	30	2.4	110
XBD11/10-80HYD	10	1.1	22	XBD25/30-100HYD	30	2.5	110
XBD12/10-80HYD	10	1.2	22	XBD5/40-125HYD	40	0.5	37
XBD13/10-80HYD	10	1.3	30	XBD6/40-125HYD	40	0.6	45
XBD14/10-80HYD	10	1.4	30	XBD7/40-125HYD	40	0.7	55
XBD15/10-80HYD	10	1.5	30	XBD8/40-125HYD	40	0.8	55
XBD16/10-80HYD	10	1.6	37	XBD9/40-125HYD	40	0.9	75
XBD17/10-80HYD	10	1.7	37	XBD10/40-125HYD	40	1	75
XBD18/10-80HYD	10	1.8	37	XBD11/40-125HYD	40	1.1	90
XBD19/10-80HYD	10	1.9	45	XBD12/40-125HYD	40	1.2	90
XBD20/10-80HYD	10	2	45	XBD13/40-125HYD	40	1.3	90
XBD21/10-80HYD	10	2.1	45	XBD14/40-125HYD	40	1.4	90
XBD22/10-80HYD	10	2.2	45	XBD15/40-125HYD	40	1.5	110
XBD23/10-80HYD	10	2.3	55	XBD16/40-125HYD	40	1.6	110
XBD24/10-80HYD	10	2.4	55	XBD17/40-125HYD	40	1.7	110
XBD25/10-80HYD	10	2.5	55	XBD18/40-125HYD	40	1.8	132
XBD5/15-80HYD	15	0.5	15	XBD19/40-125HYD	40	1.9	132
XBD6/15-80HYD	15	0.6	15	XBD20/40-125HYD	40	2	132
XBD7/15-80HYD	15	0.7	18.5	XBD21/40-125HYD	40	2.1	160
XBD8/15-80HYD	15	0.8	18.5	XBD22/40-125HYD	40	2.2	160
XBD9/15-80HYD	15	0.9	22	XBD23/40-125HYD	40	2.3	160
XBD10/15-80HYD	15	1	30	XBD24/40-125HYD	40	2.4	200
XBD11/15-80HYD	15	1.1	30	XBD25/40-125HYD	40	2.5	200
XBD12/15-80HYD	15	1.2	30	XBD5/50-125HYD	50	0.5	45
XBD13/15-80HYD	15	1.3	37	XBD6/50-125HYD	50	0.6	55
XBD14/15-80HYD	15	1.4	37	XBD7/50-125HYD	50	0.7	55
XBD15/15-80HYD	15	1.5	45	XBD8/50-125HYD	50	0.8	75
XBD16/15-80HYD	15	1.6	45	XBD9/50-125HYD	50	0.9	75
XBD17/15-80HYD	15	1.7	45	XBD10/50-125HYD	50	1	90
XBD18/15-80HYD	15	1.8	55	XBD11/50-125HYD	50	1.1	110
XBD19/15-80HYD	15	1.9	55	XBD12/50-125HYD	50	1.2	110
XBD20/15-80HYD	15	2	55	XBD13/50-125HYD	50	1.3	110
XBD21/15-80HYD	15	2.1	75	XBD14/50-125HYD	50	1.4	132
XBD22/15-80HYD	15	2.2	75	XBD15/50-125HYD	50	1.5	132
XBD23/15-80HYD	15	2.3	75	XBD16/50-125HYD	50	1.6	160
XBD24/15-80HYD	15	2.4	75	XBD17/50-125HYD	50	1.7	160
XBD25/15-80HYD	15	2.5	75	XBD18/50-125HYD	50	1.8	160
XBD5/20-100HYD	20	0.5	18.5	XBD19/50-125HYD	50	1.9	200
XBD6/20-100HYD	20	0.6	18.5	XBD20/50-125HYD	50	2	200
XBD7/20-100HYD	20	0.7	22	XBD21/50-125HYD	50	2.1	200
XBD8/20-100HYD	20	0.8	22	XBD22/50-125HYD	50	2.2	200
XBD9/20-100HYD	20	0.9	30	XBD23/50-125HYD	50	2.3	220
XBD10/20-100HYD	20	1	30	XBD24/50-125HYD	50	2.4	220
XBD11/20-100HYD	20	1.1	37	XBD25/50-125HYD	50	2.5	220
XBD12/20-100HYD	20	1.2	37	XBD5/60-125HYD	60	0.5	45
XBD13/20-100HYD	20	1.3	45	XBD6/60-125HYD	60	0.6	55
XBD14/20-100HYD	20	1.4	55	XBD7/60-125HYD	60	0.7	75
XBD15/20-100HYD	20	1.5	55	XBD8/60-125HYD	60	0.8	75
XBD16/20-100HYD	20	1.6	55	XBD9/60-125HYD	60	0.9	90
XBD17/20-100HYD	20	1.7	75	XBD10/60-125HYD	60	1	110
XBD18/20-100HYD	20	1.8	75	XBD11/60-125HYD	60	1.1	110
XBD19/20-100HYD	20	1.9	75	XBD12/60-125HYD	60	1.2	132
XBD20/20-100HYD	20	2	75	XBD13/60-125HYD	60	1.3	132
XBD21/20-100HYD	20	2.1	90	XBD14/60-125HYD	60	1.4	160
XBD22/20-100HYD	20	2.2	90	XBD15/60-125HYD	60	1.5	160
XBD23/20-100HYD	20	2.3	90	XBD16/60-125HYD	60	1.6	200
XBD24/20-100HYD	20	2.4	90	XBD17/60-125HYD	60	1.7	200
XBD25/20-100HYD	20	2.5	90	XBD18/60-125HYD	60	1.8	200
XBD5/25-100HYD	25	0.5	22	XBD19/60-125HYD	60	1.9	220
XBD6/25-100HYD	25	0.6	30	XBD20/60-125HYD	60	2	220
XBD7/25-100HYD	25	0.7	30	XBD5/70-150HYD	70	0.5	55
XBD8/25-100HYD	25	0.8	37	XBD6/70-150HYD	70	0.6	75
XBD9/25-100HYD	25	0.9	37	XBD7/70-150HYD	70	0.7	90
XBD10/25-100HYD	25	1	45	XBD8/70-150HYD	70	0.8	90
XBD11/25-100HYD	25	1.1	45	XBD9/70-150HYD	70	0.9	110
XBD12/25-100HYD	25	1.2	55	XBD10/70-150HYD	70	1	110
XBD13/25-100HYD	25	1.3	55	XBD11/70-150HYD	70	1.1	110
XBD14/25-100HYD	25	1.4	75	XBD12/70-150HYD	70	1.2	132
XBD15/25-100HYD	25	1.5	75	XBD13/70-150HYD	70	1.3	132
XBD16/25-100HYD	25	1.6	75	XBD14/70-150HYD	70	1.4	160
XBD17/25-100HYD	25	1.7	75	XBD15/70-150HYD	70	1.5	160
XBD18/25-100HYD	25	1.8	75	XBD16/70-150HYD	70	1.6	200
XBD19/25-100HYD	25	1.9	90	XBD17/70-150HYD	70	1.7	200
XBD20/25-100HYD	25	2	90	XBD18/70-150HYD	70	1.8	220
XBD21/25-100HYD	25	2.1	90	XBD19/70-150HYD	70	1.9	220
XBD22/25-100HYD	25	2.2	110	XBD20/70-150HYD	70	2	220
XBD23/25-100HYD	25	2.3	110	XBD5/80-150HYD	80	0.5	75
XBD24/25-100HYD	25	2.4	110	XBD6/80-150HYD	80	0.6	90
XBD25/25-100HYD	25	2.5	110	XBD7/80-150HYD	80	0.7	90
XBD5/30-100HYD	30	0.5	22	XBD8/80-150HYD	80	0.8	110
XBD6/30-100HYD	30	0.6	30	XBD9/80-150HYD	80	0.9	132
XBD7/30-100HYD	30	0.7	37	XBD10/80-150HYD	80	1	132
XBD8/30-100HYD	30	0.8	37	XBD11/80-150HYD	80	1.1	160
XBD9/30-100HYD	30	0.9	45	XBD12/80-150HYD	80	1.2	160
XBD10/30-100HYD	30	1	55	XBD13/80-150HYD	80	1.3	200
XBD11/30-100HYD	30	1.1	55	XBD14/80-150HYD	80	1.4	200
XBD12/30-100HYD	30	1.2	55	XBD15/80-150HYD	80	1.5	220
XBD13/30-100HYD	30	1.3	75	XBD16/80-150HYD	80	1.6	220
XBD14/30-100HYD	30	1.4	75	XBD17/80-150HYD	80	1.7	250
XBD15/30-100HYD	30	1.5	75	XBD18/80-150HYD	80	1.8	250
XBD16/30-100HYD	30	1.6	75	XBD19/80-150HYD	80	1.9	280
XBD17/30-100HYD	30	1.7	90	XBD20/80-150HYD	80	2	280
XBD18/30-100HYD	30	1.8	90
