ZSC柴油机式双吸自吸泵
所属分类：柴油机水泵
浏览次数：44
二维码：
添加时间：2025-04-09
简要说明：
浏览次数：44
二维码：
添加时间：2025-04-09
简要说明：
产品特点
大流量-高扬程-直联式.柴油机式双吸自吸泵ZSC可采用分体式与直联式及便拆式三种结构，按类型又分为清水型、污水型两大系列，于国内同类产品相比，具有结构简单紧凑、振动小、自吸性能好、排污能力强、节能、使用维修方便等优点，具有广阔的应用市场和发展前景。
产品概述
ZSC型双吸柴油机自吸泵，根据双吸式自吸泵原理，以柴油机为动力输送水或类似于水的液体介质，它采用国家标准规范设计，其系列化、标准化、通用化程度高，该型泵运行平稳、可靠，在设计中采用新结构、新材质，可适用多种介质的输送。
大流量-高扬程-直联式双吸自吸泵AYZSL是本公司根据市场需求而开发的一种全新结构的节能型双吸自吸泵产品。该泵解决了单吸式自吸泵的轴向拉力大、自吸时间长、效率低等问题，具有吸程高、自吸时间短、使用效率高、节能效果显著、运行平稳，使用寿命长等优点。AYZS清水型适用于输送清水或轻度污水的场合，效率比污水型高，自吸性能好。AYZSW污水型泵集自吸和无堵塞排污于一体，采用轴向回流外混式，并通过泵体、叶轮流道的独特设计，既不需要安装底阀和灌引水，又可吸排含有颗粒固体和纤维等杂质的液体，可广泛适用于市政排污工程、荷塘养殖、轻工、造纸、食品、化工、电业、纤维、浆料和混合悬浮等化工介质理想的杂质泵。ZSC型柴油机式双吸自吸泵适用于各种复杂的应急抢险、消防等场合，不受电源、使用场地等因素的影响，可以移动作业，灵活性高。
性能参数

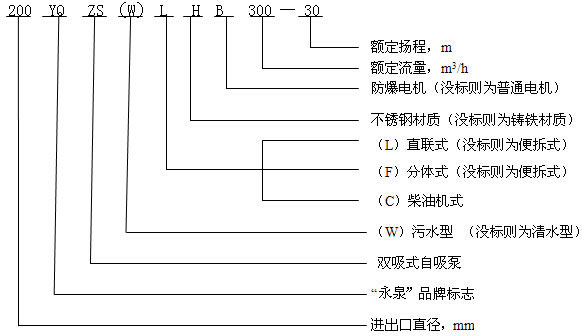

大流量-高扬程-直联式双吸自吸泵AYZSL型号说明
大流量-高扬程-直联式双吸自吸泵AYZSL的使用范围
1、环境温度≤50℃，介质温度≤80℃特殊要求可达200 ℃ 。
2、介质PH值铸铁材质为6～9，不锈钢为2～13。
3、AYZSW污水型双吸式自吸泵使用介质重度不过1240kg/m3,污水型同型号泵扬程低于清水型10%
4、自吸高度不能过规定值5～7米 ，吸入管长度为≤10m。
5、AYZSW污水型双吸式自吸泵通过能力悬浮颗粒直径约为泵口径的20%，纤维长度泵口径的5倍。
参数图表：
| 序号 | 型号 | 流量 m3/h | 扬程 m | 效率 % | 功率 kW | 转速n r/min | 汽蚀余量 | 自吸高度 | 自吸时间 | 重量 |
| 1 | 100ZSL80-10-4.2-4 | 80 | 10 | 68.1 | 4 | 1450 | 2.0 | 5.5 | 100 | 230 |
| 2 | 100ZSL100-12-5.5-4 | 100 | 12 | 74.3 | 5.5 | 1450 | 2.5 | 6.0 | 100 | 260 |
| 3 | 100ZSL100-15-7.5-4 | 100 | 15 | 68.1 | 7.5 | 1450 | 2.5 | 6.0 | 100 | 280 |
| 4 | 100ZSL100-20-11-4 | 100 | 20 | 66.1 | 11 | 1450 | 2.5 | 6.5 | 100 | 320 |
| 5 | 100ZSL100-25-15-4 | 100 | 25 | 60.6 | 15 | 1450 | 2.5 | 7.0 | 100 | 330 |
| 6 | 100ZSL100-30-18.5-4 | 100 | 30 | 58.9 | 18.5 | 1450 | 2.5 | 7.0 | 100 | 360 |
| 7 | 100ZSL100-40-22-2 | 100 | 40 | 66.1 | 22 | 2900 | 2.5 | 7.0 | 100 | 360 |
| 8 | 100ZSL100-50-30-2 | 100 | 50 | 60.6 | 30 | 2900 | 2.5 | 7.0 | 100 | 440 |
| 9 | 100ZSL100-60-37-2 | 100 | 60 | 63.1 | 37 | 2900 | 2.5 | 7.0 | 100 | 450 |
| 10 | 100ZSL100-70-45-2 | 100 | 70 | 60.6 | 45 | 2900 | 2.5 | 7.0 | 100 | 530 |
| 11 | 100ZSL100-80-45-2 | 100 | 80 | 64.6 | 45 | 2900 | 2.5 | 5.5 | 100 | 540 |
| 12 | 150ZSL150-10-7.5-4 | 150 | 10 | 68.1 | 7.5 | 1450 | 2.5 | 6.0 | 100 | 330 |
| 13 | 150ZSL150-15-11-4 | 150 | 15 | 69.7 | 11 | 1450 | 2.5 | 6.0 | 100 | 340 |
| 14 | 150ZSL150-20-15-4 | 150 | 20 | 68.1 | 15 | 1450 | 2.5 | 6.5 | 100 | 370 |
| 15 | 150ZSL150-25-18.5-4 | 150 | 25 | 69.0 | 18.5 | 1450 | 2.5 | 6.5 | 100 | 420 |
| 16 | 150ZSL150-30-22-4 | 150 | 30 | 69.7 | 22 | 1450 | 2.5 | 7.0 | 100 | 480 |
| 17 | 150ZSL150-35-30-4 | 150 | 35 | 63.6 | 30 | 1450 | 2.5 | 7.0 | 100 | 660 |
| 18 | 150ZSL150-40-37-4 | 150 | 40 | 63.6 | 37 | 1450 | 2.5 | 7.0 | 100 | 680 |
| 19 | 150ZSL150-50-45-4 | 150 | 50 | 67.2 | 45 | 1450 | 2.5 | 7.0 | 100 | 720 |
| 20 | 150ZSL150-40-37-2 | 150 | 40 | 63.1 | 37 | 2900 | 2.5 | 7.0 | 100 | 480 |
| 21 | 150ZSL150-50-45-2 | 150 | 50 | 60.6 | 45 | 2900 | 2.5 | 7.0 | 100 | 540 |
| 22 | 150ZSL150-65-55-2 | 150 | 65 | 64.4 | 55 | 2900 | 2.5 | 7.0 | 100 | 720 |
| 23 | 150ZSL150-80-75-2 | 150 | 80 | 62.3 | 75 | 2900 | 2.5 | 7.0 | 100 | 880 |
| 24 | 150ZSL200-11-11-4 | 200 | 11 | 68.1 | 11 | 1450 | 2.5 | 5.5 | 100 | 340 |
| 25 | 150ZSL200-15-15-4 | 200 | 15 | 68.1 | 15 | 1450 | 2.5 | 6.0 0 | 100 | 370 |
| 26 | 150ZSL200-18-18.5-4 | 200 | 18 | 66.3 | 18.5 | 1450 | 2.5 | 6.0 | 100 | 420 |
| 27 | 150ZSL200-22-22-4 | 200 | 22 | 68.1 | 22 | 1450 | 2.5 | 6.5 | 100 | 480 |
| 28 | 150ZSL200-27-30-4 | 200 | 27 | 65.4 | 30 | 1450 | 2.5 | 7.0 | 100 | 660 |
| 29 | 150ZSL200-32-37-4 | 200 | 32 | 62.8 | 37 | 1450 | 2.5 | 7.0 | 100 | 680 |
| 30 | 150ZSL200-40-45-4 | 200 | 40 | 63.7 | 45 | 1450 | 2.5 | 7.0 | 100 | 720 |
| 31 | 150ZSL200-50-55-4 | 200 | 50 | 65.2 | 45 | 1450 | 2.5 | 7.0 | 100 | 860 |
| 32 | 150ZSL200-40-45-2 | 200 | 40 | 64.6 | 45 | 2900 | 2.5 | 7.0 | 100 | 540 |
| 33 | 150ZSL200-50-55-2 | 200 | 50 | 66.1 | 55 | 2900 | 2.5 | 7.0 | 100 | 720 |
| 34 | 150ZSL200-65-75-2 | 200 | 65 | 63.0 | 75 | 2900 | 2.5 | 7.0 | 100 | 880 |
| 35 | 150ZSL200-80-90-2 | 200 | 80 | 64.6 | 90 | 2900 | 2.5 | 7.0 | 100 | 950 |
| 36 | 150ZSL250-50-55-4 | 250 | 50 | 69.7 | 55 | 1450 | 2.5 | 7.0 | 100 | 860 |
| 37 | 200ZSL250-12-15-6 | 250 | 12 | 68.1 | 15 | 960 | 3.0 | 5.5 | 120 | 480 |
| 38 | 200ZSL250-15-18-6 | 250 | 15 | 69.0 | 18 | 960 | 3.0 | 6.0 | 120 | 520 |
| 39 | 200ZSL250-20-22-4 | 250 | 20 | 72.9 | 22 | 1450 | 3.0 | 6.0 0 | 120 | 620 |
| 40 | 200ZSL250-25-30-4 | 250 | 25 | 66.8 | 30 | 1450 | 3.0 | 6.0 | 120 | 710 |
| 41 | 200ZSL250-30-37-4 | 250 | 30 | 69.3 | 32 | 1450 | 3.0 | 6.5 | 120 | 820 |
| 42 | 200ZSL250-40-45-4 | 250 | 40 | 71.2 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
| 43 | 200ZSL250-45-55-4 | 250 | 45 | 69.7 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
| 44 | 200ZSL250-55-75-4 | 250 | 55 | 62.4 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
| 45 | 200ZSL250-65-90-4 | 250 | 65 | 65.6 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
| 46 | 200ZSL300-10-15-6 | 300 | 10 | 72.7 | 15 | 960 | 3.0 | 5.5 | 120 | 480 |
| 47 | 200ZSL300-12-18.5-6 | 300 | 12 | 70.7 | 18.5 | 960 | 3.0 | 6.0 | 120 | 520 |
| 48 | 200ZSL300-15-22-4 | 300 | 15 | 74.3 | 22 | 1450 | 3.0 | 6.0 | 120 | 620 |
| 49 | 200ZSL300-20-30-4 | 300 | 20 | 72.7 | 30 | 1450 | 3.0 | 6.5 | 120 | 710 |
| 50 | 200ZSL300-25-37-4 | 300 | 25 | 73.6 | 37 | 1450 | 3.0 | 6.5 | 120 | 820 |
| 51 | 200ZSL300-30-45-4 | 300 | 30 | 72.7 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
| 52 | 200ZSL300-40-55-4 | 300 | 40 | 74.3 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
| 53 | 200ZSL300-50-75-4 | 300 | 50 | 68.1 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
| 54 | 200ZSL300-55-75-4 | 300 | 55 | 74.9 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
| 55 | 200ZSL300-60-90-4 | 300 | 60 | 68.1 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
| 56 | 200ZSL350-8-15-6 | 350 | 8 | 63.6 | 15 | 960 | 3.0 | 5.0 | 120 | 580 |
| 57 | 200ZSL350-11-18.5-6 | 350 | 11 | 70.9 | 18.5 | 960 | 3.0 | 5.5 | 120 | 620 |
| 58 | 200ZSL350-13-22-4 | 350 | 13 | 70.4 | 22 | 1450 | 3.0 | 5.5 | 120 | 620 |
| 59 | 200ZSL350-17-30-4 | 350 | 17 | 67.6 | 30 | 1450 | 3.0 | 6.0 | 120 | 710 |
| 60 | 200ZSL350-22-37-4 | 350 | 22 | 66.7 | 37 | 1450 | 3.0 | 6.5 | 120 | 820 |
| 61 | 200ZSL350-28-45-4 | 350 | 28 | 69.8 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
| 62 | 200ZSL350-35-55-4 | 350 | 35 | 71.4 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
| 63 | 200ZSL350-42-75-4 | 350 | 42 | 66.8 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
| 64 | 200ZSL350-50-90-4 | 350 | 50 | 66.2 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
| 65 | 200ZSL350-60-110-4 | 350 | 60 | 65.0 | 110 | 1450 | 3.0 | 7.0 | 120 | 1120 |
| 66 | 200ZSL400-9-18.5-6 | 400 | 9 | 66.3 | 18.5 | 960 | 3.0 | 5.0 | 120 | 620 |
| 67 | 200ZSL400-11-22-6 | 400 | 11 | 68.1 | 22 | 960 | 3.0 | 5.5 | 120 | 710 |
| 68 | 200ZSL400-15-30-4 | 400 | 15 | 68.1 | 30 | 1450 | 3.0 | 6.0 | 120 | 710 |
| 69 | 200ZSL400-20-37-4 | 400 | 20 | 69.3 | 37 | 1450 | 3.0 | 6.5 | 120 | 820 |
| 70 | 200ZSL400-25-45-4 | 400 | 25 | 71.2 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
| 71 | 200ZSL400-30-55-4 | 400 | 30 | 69.9 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
| 72 | 200ZSL400-40-75-4 | 400 | 40 | 68.4 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
| 73 | 200ZSL400-48-90-4 | 400 | 48 | 68.4 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
| 74 | 200ZSL400-55-110-4 | 400 | 55 | 64.1 | 110 | 1450 | 3.0 | 7.0 | 120 | 1120 |
| 75 | 200ZSL400-65-132-4 | 400 | 65 | 63.1 | 132 | 1450 | 3.0 | 7.0 | 120 | 1160 |
| 76 | 250ZSL500-12-30-6 | 500 | 12 | 64.1 | 30 | 960 | 4.0 | 5.5 | 150 | 1070 |
| 77 | 250ZSL500-15-37-4 | 500 | 15 | 65.0 | 37 | 1450 | 4.0 | 6.0 | 150 | 1070 |
| 78 | 250ZSL500-20-45-4 | 500 | 20 | 71.2 | 45 | 1450 | 4.0 | 6.0 | 150 | 1110 |
| 79 | 250ZSL500-25-55-4 | 500 | 25 | 72.9 | 55 | 1450 | 4.0 | 6.5 | 150 | 1220 |
| 80 | 250ZSL500-30-75-4 | 500 | 30 | 64.1 | 75 | 1450 | 4.0 | 6.5 | 150 | 1310 |
| 81 | 250ZSL500-35-90-4 | 500 | 35 | 62.3 | 90 | 1450 | 4.0 | 6.5 | 150 | 1360 |
| 82 | 250ZSL500-40-90-4 | 500 | 40 | 71.2 | 90 | 1450 | 4.0 | 6.5 | 150 | 1360 |
| 83 | 250ZSL600-10-30-6 | 600 | 10 | 64.1 | 30 | 960 | 4.0 | 5.5 | 150 | 1070 |
| 84 | 250ZSL600-13-37.0-4 | 600 | 13 | 67.6 | 37 | 1450 | 4.0 | 6.0 | 150 | 1070 |
| 85 | 250ZSL600-16-45.0-4 | 600 | 16 | 68.4 | 45 | 1450 | 4.0 | 6.0 | 150 | 1110 |
| 86 | 250ZSL600-22-55.0-4 | 600 | 22 | 76.9 | 55 | 1450 | 4.0 | 6.5 | 150 | 1220 |
| 87 | 250ZSL600-27-75.0-4 | 600 | 27 | 69.2 | 75 | 1450 | 4.0 | 6.5 | 150 | 1310 |
| 88 | 250ZSL600-32-90.0-4 | 600 | 32 | 68.4 | 90 | 1450 | 4.0 | 6.5 | 150 | 1360 |
| 89 | 250ZSL600-40-110-4 | 600 | 40 | 69.9 | 110 | 1450 | 4.0 | 6.5 | 150 | 1450 |
| 90 | 250ZSL600-48-132-4 | 600 | 48 | 69.9 | 132 | 1450 | 4.0 | 6.5 | 150 | 1490 |
| 91 | 250ZSL600-55-160-4 | 600 | 55 | 66.1 | 160 | 1450 | 4.0 | 6.5 | 150 | 1550 |
| 92 | 300ZSL800-10-37-6 | 800 | 10 | 69.3 | 37 | 960 | 5.0 | 5.5 | 150 | 1260 |
| 93 | 300ZSL800-13-45-6 | 800 | 13 | 74.1 | 45 | 960 | 5.0 | 5.5 | 150 | 1350 |
| 94 | 300ZSL800-16-55-6 | 800 | 16 | 74.6 | 55 | 960 | 5.0 | 5.5 | 150 | 1390 |
| 95 | 300ZSL800-20-75-4 | 800 | 20 | 68.4 | 75 | 1450 | 5.0 | 6.0 | 150 | 1350 |
| 96 | 300ZSL800-26-90-4 | 800 | 26 | 74.1 | 90 | 1450 | 5.0 | 6.5 | 150 | 1390 |
| 97 | 300ZSL800-32-110-4 | 800 | 32 | 74.6 | 110 | 1450 | 5.0 | 6.5 | 150 | 1480 |
| 98 | 300ZSL800-37-132-4 | 800 | 37 | 71.9 | 132 | 1450 | 5.0 | 6.5 | 150 | 1520 |
| 99 | 300ZSL800-42-160-4 | 800 | 42 | 67.3 | 160 | 1450 | 5.0 | 6.5 | 150 | 1580 |
| 100 | 300ZSL1000-8-37-6 | 1000 | 8 | 69.3 | 37 | 960 | 5.0 | 5.5 | 150 | 1260 |
| 101 | 300ZSL1000-10-45-6 | 1000 | 10 | 71.2 | 45 | 960 | 5.0 | 5.5 | 150 | 1350 |
| 102 | 300ZSL1000-12-55-6 | 1000 | 12 | 69.9 | 55 | 960 | 5.0 | 6.0 | 150 | 1390 |
| 103 | 300ZSL1000-16-75-4 | 1000 | 16 | 68.4 | 75 | 1450 | 5.0 | 6.0 | 150 | 1350 |
| 104 | 300ZSL1000-20-90-4 | 1000 | 20 | 71.2 | 90 | 1450 | 5.0 | 6.5 | 150 | 1390 |
| 105 | 300ZSL1000-25-110-4 | 1000 | 25 | 72.9 | 110 | 1450 | 5.0 | 6.5 | 150 | 1480 |
| 106 | 300ZSL1000-30-132-4 | 1000 | 30 | 72.9 | 132 | 1450 | 5.0 | 6.5 | 150 | 1520 |
| 107 | 300ZSL1000-35-160-4 | 1000 | 35 | 70.1 | 160 | 1450 | 5.0 | 6.5 | 150 | 1580 |
| 108 | 350ZSL1200-7-37-6 | 1200 | 7 | 72.8 | 37 | 960 | 5.0 | 5.5 | 150 | 1280 |
| 109 | 350ZSL1200-9-45-6 | 1200 | 9 | 76.9 | 45 | 960 | 5.0 | 5.5 | 150 | 1370 |
| 110 | 350ZSL1200-11-55-6 | 1200 | 11 | 66.7 | 55 | 960 | 5.0 | 5.5 | 150 | 1420 |
| 111 | 350ZSL1200-13-75-4 | 1200 | 13 | 72.7 | 75 | 1450 | 5.0 | 6.0 | 150 | 1370 |
| 112 | 350ZSL1200-17-90-4 | 1200 | 17 | 76.9 | 90 | 1450 | 5.0 | 6.0 | 150 | 1420 |
| 113 | 350ZSL1200-22-110-4 | 1200 | 22 | 75.8 | 110 | 1450 | 5.0 | 6.5 | 150 | 1510 |
| 114 | 350ZSL1200-26-132-4 | 1200 | 26 | 72.1 | 132 | 1450 | 5.0 | 6.5 | 150 | 1540 |
| 115 | 350ZSL1200-30-160-4 | 1200 | 30 | 67.3 | 160 | 1450 | 5.0 | 6.5 | 150 | 1620 |
| 116 | 350ZSL1200-35-200-4 | 1200 | 35 | 71.5 | 200 | 1450 | 5.0 | 6.5 | 150 | 1710 |
| 117 | 350ZSL1500-5.5-37-6 | 1500 | 5.5 | 74.8 | 37 | 960 | 5.0 | 6.5 | 150 | 1280 |
| 118 | 350ZSL1500-7-45-6 | 1500 | 7 | 78.7 | 45 | 960 | 5.0 | 5.5 | 150 | 1370 |
| 119 | 350ZSL1500-9-55-6 | 1500 | 9 | 70.5 | 55 | 960 | 5.0 | 5.5 | 150 | 1420 |
| 120 | 350ZSL1500-11-75-4 | 1500 | 11 | 74.8 | 75 | 1450 | 5.0 | 6.0 | 150 | 1370 |
| 121 | 350ZSL1500-14-90-4 | 1500 | 14 | 74.3 | 90 | 1450 | 5.0 | 6.0 | 150 | 1420 |
| 122 | 350ZSL1500-17-110-4 | 1500 | 17 | 74.3 | 110 | 1450 | 5.0 | 6.5 | 150 | 1510 |
| 123 | 350ZSL1500-20-132-4 | 1500 | 20 | 72.9 | 132 | 1450 | 5.0 | 6.5 | 150 | 1540 |
| 124 | 350ZSL1500-25-160-4 | 1500 | 25 | 75.1 | 160 | 1450 | 5.0 | 6.5 | 150 | 1620 |
| 125 | 350ZSL1500-30-200-4 | 1500 | 30 | 72.1 | 200 | 1450 | 5.0 | 6.5 | 150 | 1710 |
| 126 | 350ZSL1500-35-220-4 | 1500 | 35 | 76.5 | 220 | 1450 | 5.0 | 6.5 | 150 | 1820 |
| 127 | 400ZSL1800-10-90-6 | 1800 | 10 | 64.1 | 90 | 960 | 5.0 | 5.5 | 150 | 1650 |
| 128 | 400ZSL1800-12-110-6 | 1800 | 12 | 63.0 | 110 | 960 | 5.0 | 6.0 | 150 | 1750 |
| 129 | 400ZSL1800-15-132-6 | 1800 | 15 | 65.6 | 132 | 960 | 5.0 | 6.5 | 150 | 1860 |
| 130 | 400ZSL1800-18-160-4 | 1800 | 18 | 64.9 | 160 | 960 | 5.0 | 6.5 | 150 | 1920 |
| 131 | 400ZSL1800-24-200-6 | 1800 | 24 | 69.2 | 200 | 960 | 5.0 | 6.5 | 150 | 2100 |
| 132 | 400ZSL1800-26-220-6 | 1800 | 26 | 68.2 | 220 | 960 | 5.0 | 6.5 | 150 | 2200 |
| 133 | 400ZSL1800-30-250-6 | 1800 | 30 | 69.2 | 250 | 960 | 5.0 | 6.5 | 150 | 2500 |
| 134 | 400ZSL1800-32-280-4 | 1800 | 32 | 68.2 | 280 | 1450 | 5.0 | 6.5 | 150 | 2400 |
| 135 | 400ZSL1800-35-315-4 | 1800 | 35 | 64.1 | 315 | 1450 | 5.0 | 6.5 | 150 | 2550 |
| 136 | 400ZSL2000-9-90-6 | 2000 | 9 | 64.1 | 90 | 960 | 5.0 | 5.5 | 150 | 1650 |
| 137 | 400ZSL2000-11-110-6 | 2000 | 11 | 64.1 | 110 | 960 | 5.0 | 6.0 | 150 | 1750 |
| 138 | 400ZSL2000-14-132-6 | 2000 | 14 | 68 | 132 | 960 | 5.0 | 6.0 | 150 | 1860 |
| 139 | 400ZSL2000-17-160-6 | 2000 | 17 | 68.1 | 160 | 960 | 5.0 | 6.5 | 150 | 1920 |
| 140 | 400ZSL2000-22-200-6 | 2000 | 22 | 70.5 | 200 | 960 | 5.0 | 6.5 | 150 | 2100 |
| 141 | 400ZSL2000-24-220-6 | 2000 | 24 | 69.9 | 220 | 960 | 5.0 | 6.5 | 150 | 2200 |
| 142 | 400ZSL2000-28-250-6 | 2000 | 28 | 71.8 | 250 | 960 | 5.0 | 6.5 | 150 | 2500 |
| 143 | 400ZSL2000-30-280-4 | 2000 | 30 | 71.2 | 280 | 1450 | 5.0 | 6.5 | 150 | 2400 |
| 144 | 400ZSL2000-32-315-4 | 2000 | 32 | 65.1 | 315 | 1450 | 5.0 | 6.5 | 150 | 2550 |
| 145 | 500ZSL2200-8-90-6 | 2200 | 8 | 62.7 | 90 | 960 | 5.0 | 5.5 | 150 | 1680 |
| 146 | 500ZSL2200-10-110-6 | 2200 | 10 | 64.1 | 110 | 960 | 5.0 | 5.5 | 150 | 1780 |
| 147 | 500ZSL2200-12-132-6 | 2200 | 12 | 64.1 | 132 | 960 | 5.0 | 6.0 | 150 | 1880 |
| 148 | 500ZSL2200-15-160-6 | 2200 | 15 | 66.1 | 160 | 960 | 5.0 | 6.5 | 150 | 1950 |
| 149 | 500ZSL2200-20-200-6 | 2200 | 20 | 70.5 | 200 | 960 | 5.0 | 6.5 | 150 | 2130 |
| 150 | 500ZSL2200-22-220-6 | 2200 | 22 | 70.5 | 220 | 960 | 5.0 | 6.5 | 150 | 2230 |
| 151 | 500ZSL2200-25-250-6 | 2200 | 25 | 70.5 | 250 | 960 | 5.0 | 6.5 | 150 | 2530 |
| 152 | 500ZSL2200-28-280-4 | 2200 | 28 | 70.2 | 280 | 1450 | 5.0 | 6.5 | 150 | 2450 |
首页
电话
产品
